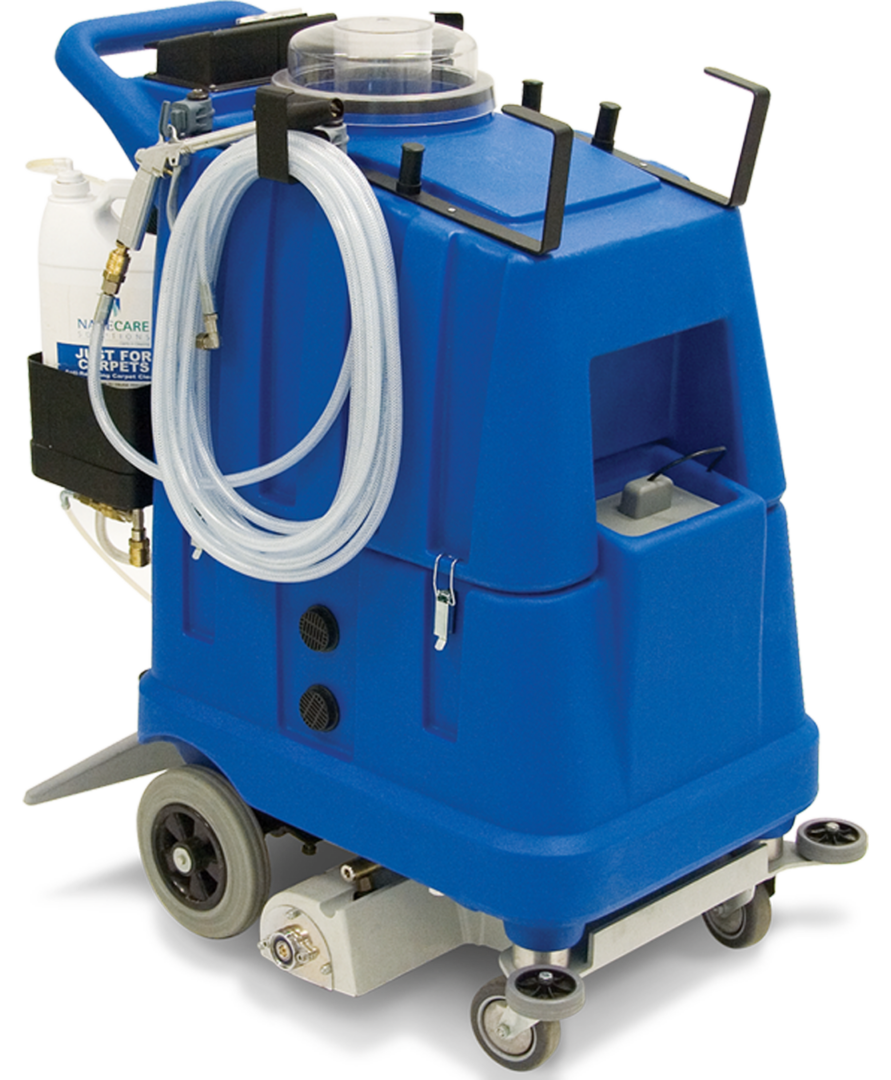

AV 12QX

Self Contained Carpet Extractor

SKU: 8025164

Our walk-behind AV 12QX preserves quality, appearance, and life of carpets. It is quiet and surprisingly lightweight making it easy to maneuver and transport. Designed to tackle heavy duty jobs, the AV 12QX is constructed of durable polyethylene and features a 130 psi pump, providing a flow rate up to 1.2 gpm. The powerful 1.8 HP, three-stage vacuum motor provides 135-inch water lift and 95 cfm of airflow. The spring-loaded vacuum shoe is adjustable, ensuring consistent pressure and pick-up on different carpet thicknesses and uneven floors. While great at cleaning carpets, the carpet shoe is easily substituted with an optional squeegee for cleaning hard floors. Ideal for commercial cleaners and contractors; cleaning and maintenance crews: Its quiet operation is an excellent choice for hospitality and healthcare sectors. You’ll find the AV 12QX perfect for both interim maintenance and restorative cleaning.

  • Tanks are constructed of roto molded polyethylene.
  • Powerful 1.8 HP 3 stage vacuum motor provides 135” water lift and 95 cfm of airflow.
  • Features a 130 psi diaphragm pump with bypass.
  • Excellent for both interim maintenance and restorative cleaning
  • Allows upwards of 4000 sq. ft./ hour to be cleaned.
  • Easy access removable spray bar with twist off jets
  • The lock down vacuum shoe ensures consistent pressure on the carpet at all times.
  • The large 12-gallon tanks enable it to tackle even the biggest commercial jobs.
  • Lightweight and easy to transport with the upper and lower tanks detaching into two separate units.
  • Accepts all optional accessories including the HT1800 heater and Smart Kit.
Quantity:
Add to Quote
Airflow Hi 95 cfm
Capacity 12.0 US gal
Cleaning Width 20 "
Dimensions Package Height 44.09 "
Dimensions Package Length 37.40 "
Dimensions Package Width 23.62 "
Flow Rate 1.20 gpm
Noise Level 60 dB(A)
Power Cord 50 '
Pump Power 100 W
Pump Pressure 130 psi
Recovery Tank 12 US gal
Vacuum Motor 1400 W
Water Lift Hi 135 "
Weight 121 lbs
Working Capacity 4000 sq.ft./hr
Name
Resource
Download
Name: AV 12QX Extractor Product Spec Sheet
Resource: Product Spec Sheets
Name
Resource
Download
Name: AV 12QX Owner Manual
Resource: Owner's manual
